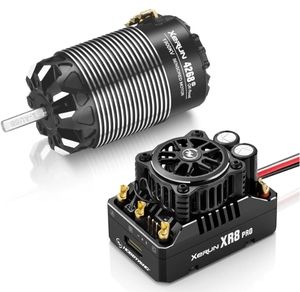

Xerun XR8 Pro G3 ESC + 4268SD G3 Motor 2200kv Combo, 4S — HWI38020433
$284.99
In stock: 1 available
Product Details
Brand: Hobbywing
Xerun XR8 Pro G3 ESC + 4268SD G3 Motor 2200kv Combo, 4S
1/8, 1/10th 1/8 Off-road,On-road Racing
1/10 Short course truck,Monster truck
Includes:
- (1) XeRun XR8 PRO G3 ESC
- (1) XeRun SD 2200kv brushless motor
Features:
- The product features three common profiles that are suitable for all 1/8 Racing applications, allowing users to select and use them instantly. These profiles include Zero timing-Blinky mode, 1/8 Off-Road Racing mode, and 1/8 On-Road Racing mode.
- XR8 PRO G3 ESC offers 32 built-in adjustable parameters, providing flexibility to meet various power requirements. These parameters can be easily imported and exported, facilitating communication and learning among drivers.
- The ESC supports firmware upgrades, which can be done using the multi-function LCD G2 programming box, OTA Programmer, or Tunalyzer (available for purchase). This allows users to enjoy the latest functions and enhancements.
- With the built-in switch mode BEC, the ESC provides a maximum output of 12A and allows adjustable voltage options of 6V or 7.4V. This flexibility is ideal for usage with servos and other devices that require different voltage levels.
- The ESC includes a built-in reverse connection protection circuit, ensuring the ESC is protected from damage in case of reverse connection.
- The ESC features a data logging function, allowing users to view various running data through the HW LINK app using the OTA Bluetooth module. This provides valuable insights and analysis for performance evaluation.
ESC Specifications:
- Cont./Peak Current: 200a/1080A
- Motor Type: Sensored/Sensorless Brushless Motors
- Applications: 1/8 Off-Road, On-Road Racing & 1/10 Short course truck, Monster truck
- Motor Limit: With 3S LiPo: KV<4000 3660 Size motor / With 4S LiPo: KV< 3000 4268 Size motor
- LiPo Cells: 2-4S LiPo
- BEC Output: 6V/7.4V Adjustable, Continuous Current: 6A (Switch-mode)
- Cooling Fan: Powered by built-in BEC
- Size/Weight: 54.8(L) x 36.8(W) x 38.8(H)mm / 102.8g
- Programming Method: Multifunction LCD G2 Program Box, OTA Programmer
Motor Specifications:
- Kv: 2200
- LiPo: 2-6s
- Outer diameter/Length: 42x67.8mm (1.654x2.669in)
- Output Shaft Diameter/Length: 5x18.5mm (.197x.728in)
- Bearing Size: Front 16x5x5mm; Rear 11x5x5mm
- Weight: 285g
- Application: 1/8th Off-Road
