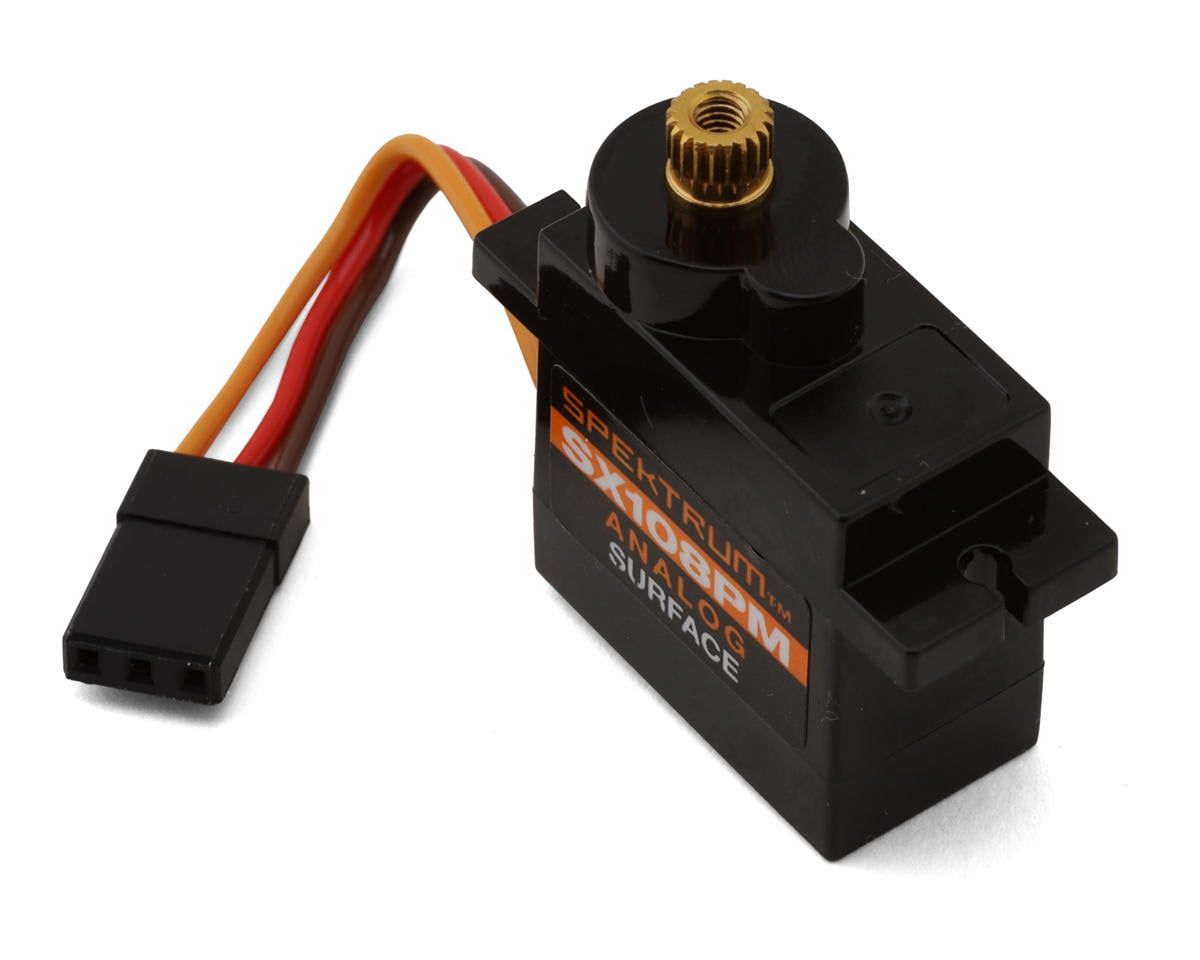

SX108PM Micro Gear Servo Promoto — SPMSSX108PM

The SX108 is purpose built for steering micro and mini models and is a great servo for utility functions like 2 – Speed transmissions and Dig. With its durable design combined with dual bearing output support, metal-gear durability, smooth coreless motor operation, an impressive 41.8 oz-in torque rating, the SX108 is the perfect mighty micro servo for your small scale vehicles.

Key Features

• 20T Spline, Micro Servo
• Full metal gear drive train
• 41.8oz-in torque rating @6v
• 0.08 sec/60° speed @6v
• Cable Length: 130mm from case to end of plug

In the Box

• (1) Servo
• (1) Servo Lead Extension
• (1) Servo Adapter

Specifications

• Maximum Servo Torque: 34.9oz/in @ 4.8V, 41.8ozin @ 6V
• Product Height: 0.87" (22 mm)
• Product Length: 0.89" (23 mm)
• Product Weight: 0.35oz (10g)
• Product Width: 0.49" (12 mm)
• Servo Size Category: Mini and Micro
• Servo Type: Analog
