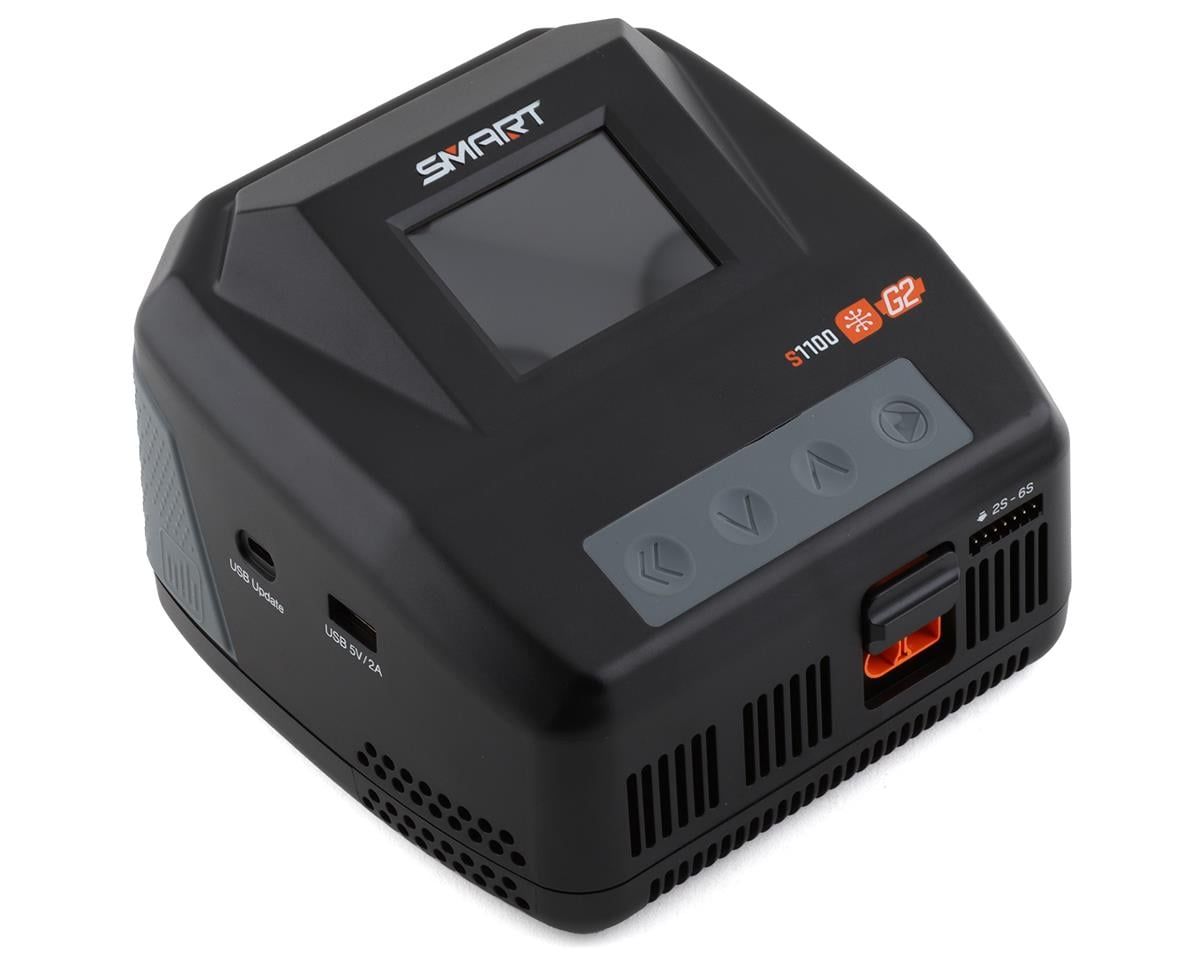

SPMXC2080

The 100W Spektrum ™ S1100 Smart AC Charger provides easy charging for all modelers, especially using Smart batteries — with Auto Charge simplicity, one-connection balancing, IC3 ® or IC5 ® output ports for adapter-free convenience, and more.

Key Features

• Delivers 100W power for charging
• Charges AND balances Smart batteries with one simple IC3® or IC5® connection — no separate balance lead needed
• Auto Charge recognizes Smart battery charging parameters and begins safe, accurate charging automatically when connected
• Charges virtually any RC battery (use Smart batteries to benefit from all charger features)
• Smart software tracks and stores numerous Smart battery data
• Includes IC3® and IC5® charging output ports — no separate adapters required to charge different Spektrum™ Smart batteries
• An on-screen clock counts down the remaining charge time until your Smart battery is fully charged and ready to use
• Updated user interface features fresh, intuitive menus, icons, and navigation tools, plus non-slip, easy-to-use buttons
• USB input and output ports are included for updating firmware and charging secondary devices
• ON/OFF switch eliminates the need to plug in and unplug the power cord for on/off control
• Detachable power cord makes transporting more convenient
• Includes an efficient, low-noise cooling fan

In the Box

• (1) S1100 Smart AC Charger
• (1) Power Cord
• (1) Manual

Specifications

• Amp Meter: Yes
• Application: RC model battery charger
• Battery Balance Connector: JST-XH
• Battery Temperature Monitoring: Yes
• Battery Type: Smart, Non Smart, LiFe (3.3V per cell), LiHV (3.8V per cell), LiIon (3.3V per cell), LiPo (3.7V per cell), NiCd (1.2V per cell), Pb (2.0V per cell), NiMH (1.2V…
• Charge Protection Circuitry: Yes
• Discharge: 0.1 - 1.5A, adjustable in 0.1A increments (15W Max)
• Display: 2.4" 320 x 240 IPS LCD
• Hard Case: Yes
• Input Voltage: 100 - 240V AC, 50 - 60 Hz
• Integrated Balancing: Yes - Internal Balancer & Internal Adapter
• LiPo Compatibility: 6S, 1S, 2S, 3S, 4S, 5S
• Maximum Charge Rate: 10 to 14 Amps
• Maximum Continuous Discharge Current: 1.5A (15W Max)
• Normal/Standard Charge Rate: 0.1 - 10.0A, adjustable in 0.1A increments (100W Max)
• Number of Cells: 1 - 6S Li-Ion/LiPo/LiFe, 1 - 16S NiCd/NiMH, 1 - 12S Pb
