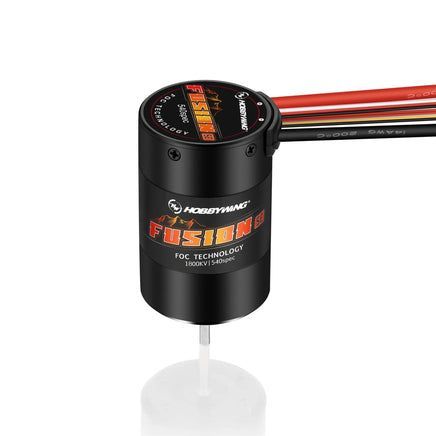

QUICRUN Fusion SE 1800KV, for Crawler, 540spec — HWI30404317

The integrated design of the ESC and the motor greatly reduces the overall volume and weight, and makes the layout and wiring of car frame simpler and more convenient.

The FOC driving mode, low speed torque is strong. Smooth running at extreme low speed, which is far superior to the common sensored brushless power system, even better than the brushed power.

Specifications

• Product Name: QuicRun Fusion SE
• P/N: 1200KV-30404318 / 1800KV-30404317
• Application: 1/10th Rock Crawler, Brushless Sensored system
• Waterproof: Yes
• Cont./Peak Current: 40A
• BEC output: 6V/7.4V adjustable, continuous current 4A (Switch mode)
• Lipo Rating: 2-3S Lipo/6-9 Cell NiMH
• Motor KV: 1200KV / 1800KV
• Diameter / Length of Motor: 36mm / 58.1mm
• Shaft dia./ exposed shaft length: 3.175mm / 16.5mm
• Motor Poles: 4
• Input Wires: Red-14AWG-200mm*1 / Black-14AWG-200mm*1
• Input connectors: XT60
• ESC Programing via: LED Program Box
• Program Port: Independent programming interface(switch position)
• Firmware Upgrade: Not supported
