Furitek SCX24 Starter 118 2S Brushless ESC & Venom Motor Combo — FTK-FUR-2426

SCX24 Starter Combo Overview

The Furitek Lizard Pro 30A Micro element resistant ESC is a Powerful ESC that delivers huge performance to small scale rock crawlers. Boasting a 30 amp continuous rating, adjustable 5A BEC, up to 3S LiPo support, and built-in wireless module programming capability! This ESC supports both brushed and brushless motors and uses FOC technology to give you a buttery smooth performance on the trail. The Furitek Venom 1212 3450kV 12-Pole hi-torque brushless Outrunner motor is designed to provide a buttery smooth feel at low and high RPM with incredibly high torque that will turn your SCX24 into a crawling performance weapon!

Key Features

• Lizard Pro ESC
• Support Sensorless brushless DC and brushed DC motor (config via the app, default is brushless)
• FOC (Field-oriented control) technology
• Compatible with stock battery
• Built-in wireless
• Built-in switchable BEC
• Built-in switch power
• Super easy programming via App on both Android and IOS
• Lifetime free firmware updates
• Compact and lightweight
• Real-time telemetry up to 10Hz
• Venom Motor

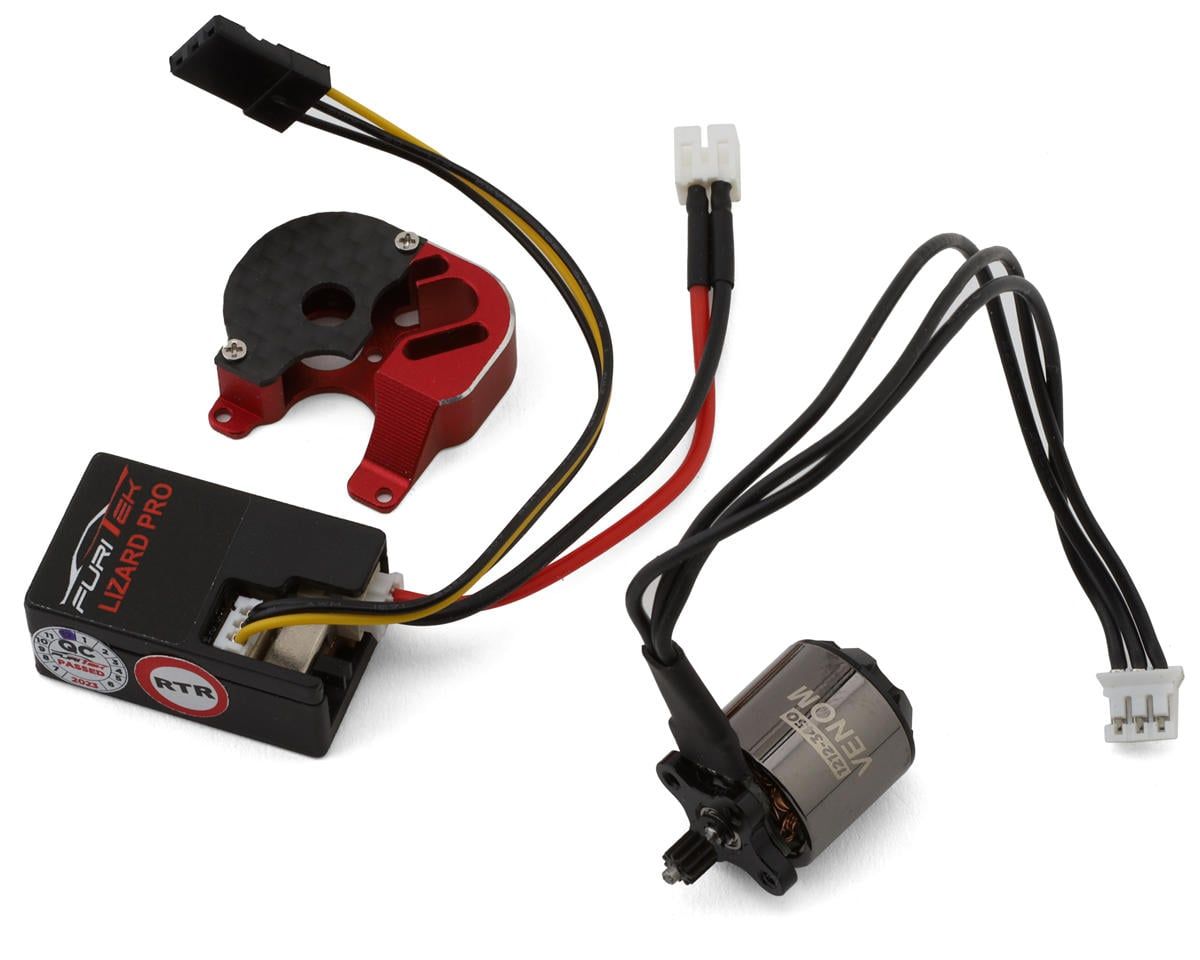

In the Box

• (1) Lizard Pro 30A Brushless ESC
• (1) Venom 1212 3450kV Brushless Motor
• (1) Aluminum Motor Plate/Transmission Case
• (1) Built-in Wireless Module
• (1) 11T CNC Steel Pinion

Specifications

• Input Voltage: 2S-3S LiPo
• Waterproof: No
• BEC: 5V-6.5V Switchable
• Continuous: 30A
• Peak: 50A
• Dimensions (LxW): 28x15.5mm
• Weight: (3.5g)
• Motor Type: Outrunner
• KV: 3450kV
• Pole: 12-Pole
• LiPo: 2S
• Power: 120W
• Resistance: 0.16 Ohm
• No Load Current(@10V): .07A
• Size (Diameter x Length): 20x15.5mm
• Weight: (17.5g)
