Furitek Axial SCX24 Torpedo RXGT5 Brushless Power System — FTK-FUR-2565

Furitek Torpedo RXGT5 Brushless Power System for Axial SCX24. The Torpedo RXGT5 Brushless Power System is a high-performance upgrade designed specifically for Axial SCX24, 1/24, and 1/18 micro crawlers. Using Furitek's advanced Field-Oriented Control (FOC) technology, this power system delivers precise and buttery-smooth control. Compatible with both Sensorless brushless and brushed DC motors, this system is engineered to elevate your micro crawler's performance with its lightweight and compact design. The Torpedo RXGT5 Brushless Power System offers easy programming through its built-in wireless capability, ensuring seamless control.

The Cedar Inrunner Brushless Motor with Steel Pinion for Axial SCX24 is a top-tier upgrade, offering unmatched efficiency and performance in a compact, waterproof, and dustproof design. Featuring a specially engineered 12-pole Inrunner configuration, this motor delivers exceptional torque and control, making it ideal for slow-speed crawling while still providing high-speed capabilities when needed. Its precision-balanced rotor, combined with high-purity copper windings and ultra-thin 0.2mm stator laminations, ensures maximum energy conversion and minimizes heat loss.

Key Features

• The ultimate upgrade for 1/24 & 1/18 micro crawlers
• Support Sensorless brushless and brushed DC motors (Default is brushless)
• FOC (Field-oriented control) technology
• Buttery smooth control
• Built-in powerful up to 8.4V HV switchable BEC
• Super compact and lightweight design
• Pressed steel pinion gear specially for SCX24 platforms
• Super easy programming via built-in wireless
• Compatible with FLYSKY FS-GT5 & Radio Master MT12 4-in-1 protocols
• Water and dustproof design with a CNC aluminum case

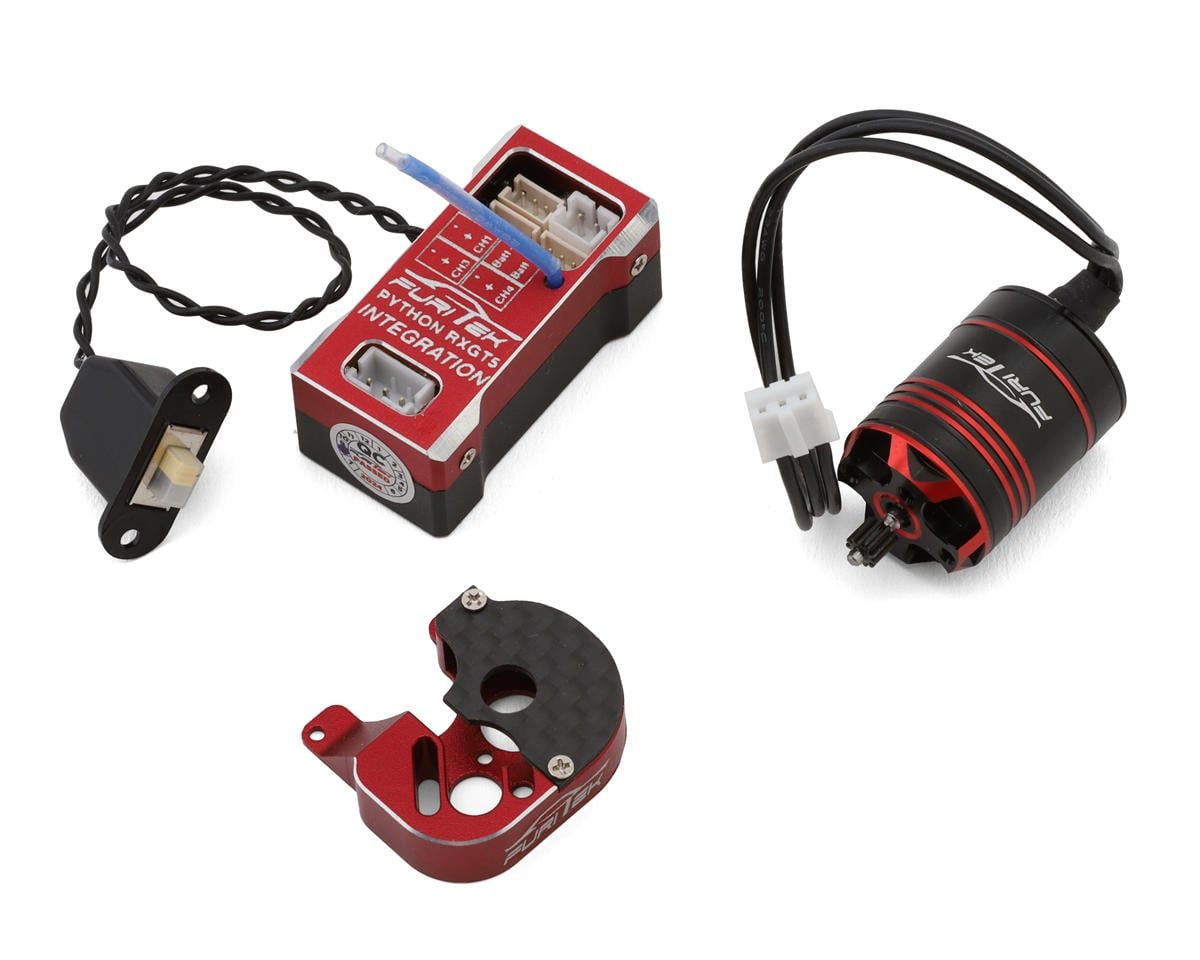

In the Box

• (1) Python RXGT5 ESC/Receiver Unit
• (1) Cedar Motor for SCX24
• (1) JST-RCY TO 2-Pin JST-PH Cable
• (1) Servo Extension cable
• (1) Water-proof power switch

Specifications

• Applications: 1/24 & 1/18 Crawlers
• Type: Brushless
• Input Voltage: 2S-3S LiPo (7.4-11.1V) LiPo
• BEC: 5.5-8.4V Switchable
• Continuous: 40A
• Peak: 70A
• Dimension (LxWxH): 0.75x1.45x0.6in. (19x37x15mm)
• Weight: 19g (0.67oz)
• Motor Type: Inrunner
• KV: 3456kV
• Pole: 12-Pole
• Resistance: 0.17Ohm
• LiPo: 2-3S
• Size: 0.7x1in. (18x25mm)
• Weight: 20g (0.7oz)
• Application: 1/24 & 1/18 Crawlers
