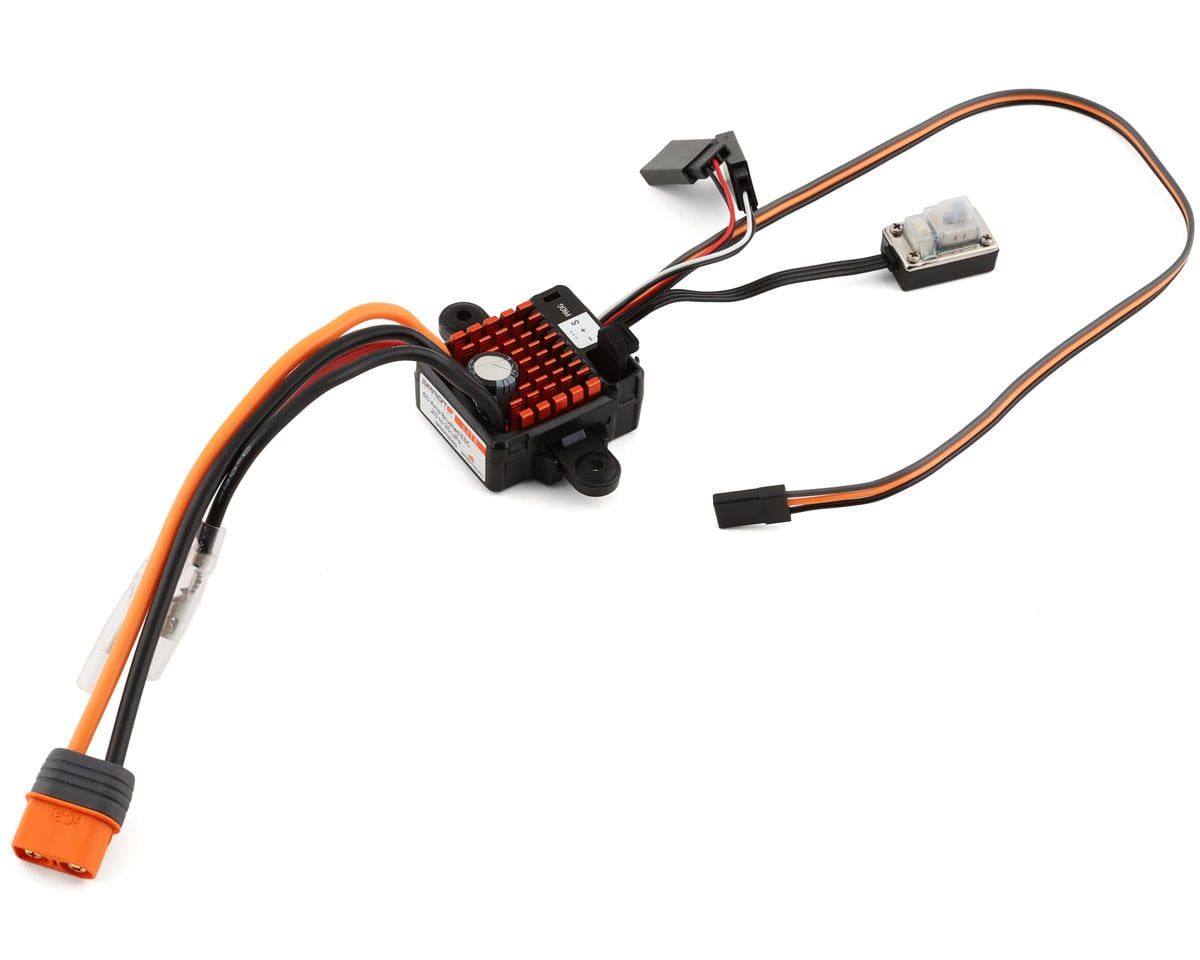

Firma 60A Lite Smart Waterproof Brushed ESC — SPMXSE60

The Spektrum Firma 60 amp Brushed Smart ESC is waterproof and ready to use in most 1/10th scale RC models. Featuring programming options that make it easy to tune for your on-road and off-road racers, scalers, crawlers, and bashers.

Key Features

• Smart all-in-one telemetry
• Smart Lite functionality Provides Spektrum Smart ESC data such as input voltage, esc temperature, and Text Gen Telemetry data over one wire. No additional sensors required.
• Integrated LED light power outputs for simple installation without the need of additional receiver ports
• Includes 2 LED Light Strings (Red and White)
• 60 Amp continuous power - excellent for 1/10 scale on-road and off-road racing and 1/10 scale crawlers and scalers
• 2S-3S LiPo Compatible
• Waterproof ESC*
• Multiple options for easy programming
• Smart ESC Programming Box
• SmartLink USB Updating and Programmer application
• Programming from Transmitter via Text Gen Telemetry
• Multi-point protection: Over-current protection Automatic LiPo low-voltage cutoff Thermal protection Failsafe protection

In the Box

• (1) Spektrum Firma 60A Brushed Smart ESC
• (2) Light Strings (red and white)
• (1) Product Manual

Needed to Complete

• Spektrum™ Surface Receiver
• 540 – 550 size Brushed motor
• 2S or 3S Lipo Battery with EC3 or IC3 Connector
• Spektrum Transmitter

Specifications

• Amperage: 60A
• Auto Cutoff: Yes
• BEC: Yes
• BEC Continuous Current: 4A
• BEC Type: Switching
• BEC Voltage: 6V / 7.4V User Selectable
• Brakes: Integrated with ESC
• Connector Type: IC3, 4mm Bullet
• Forward: Yes
• Input Voltage: 2–3 Cell Li-Po / Li-Fe; 5–9 Cell Ni-MH / Ni-Cd
• Low-Voltage Cutoff Programmable: Yes
• Maximum Continuous Current: 60A
• Motor Limit: 540 / 550 Size Motors
• Motor Type: Brushed
• Overload Protection: Yes
• Product Application: Crawling, Surface
