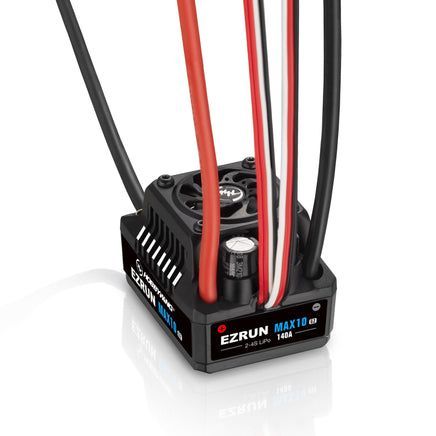

Ezrun Max10 G2 ESC 140A with XT60 Plug — HWI30102603

Generation 2

1/10th Buggy, On-road, and Light-weight SCT/Truck/Monster Truck

Key Features

• The EzRun Max10 G2 features an improved waterproof sensor-cable interface and an upgraded sensor mode to achieve a great sense of control feel and perfectly matches the EzRun 3652/3665 SD G3 motors.
• Supports Turbo timing adjustment of up to 32 degrees, and in combination with the EzRun 3652/3665 G3, the maximum speed is 25% more with greater effect.
• The smart start-stop technology is introduced to the Max10 G2 ESC. The frameless fan will not be enabled to reduce noise and save power. The fan will only work when the temperature rises to a certain level.
• Compared with the previous generation of the MAX10 ESC, the total capacitance of the capacitor is increased by 74% and is overheating-protected.
• Smart freewheeling technology enables the MAX10 G2 to have higher drive efficiency than the previous generation, resulting in lower operating temperatures and a minimum temperature of approximately 25°C lower than the…
• After connecting the ESC with the OTA BT module, you can view the data (throttle amount, voltage, current, temperature, speed and etc) in real-time through the mobile app to know the running status;
• The IP-67 waterproof system guarantees excellent waterproofing and dust-proofing protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow, and water without damaging the…

Specifications

• ESC: MAX10 G2 80A MAX10 G2 140A
• Scale Vehicles: 1/10 On-road/Off-road Short Course Truck(Light-duty) 1/10 Short course car, Truck, Monster truck
• Cont./PeakCurrent: 80A/520A 140A/880A
• Motor Mode: Sensored and sensorless brushless mode Sensored and sensorless brushless mode
• Input: 2-3S Lipo 2-4S LiPo
• Motor Limit: 2S Lipo: KV≤ 6000 (3652)3S Lipo: KV≤ 4200 (3652) 3S Lipo: KV≤ 4000 (3665)*4S Lipo: KV≤ 2600 (4268)
• 2S Lipo: KV≤ 6000 (3652)3S Lipo: KV≤ 4200 (3652)
• 3S Lipo: KV≤ 4000 (3665)*4S Lipo: KV≤ 2600 (4268)
• BEC Output: 6V / 7.4V adjustable, continuous current 5A (Switch-mode) 6V / 7.4V adjustable, continuous current 5A (Switch-mode))
• ProgrammingPort: Independent Independent
• Power Connection: XT60 XT60
• ESC Programming: Same Same
• Switch Mode: Same Same
• Capacitorprotection: Yes Yes
• Waterproof: Yes Yes
• Size (L.W.H)mm: 53 x 39.5 x 37.2mm 53 x 39.5 x 37.2mm
