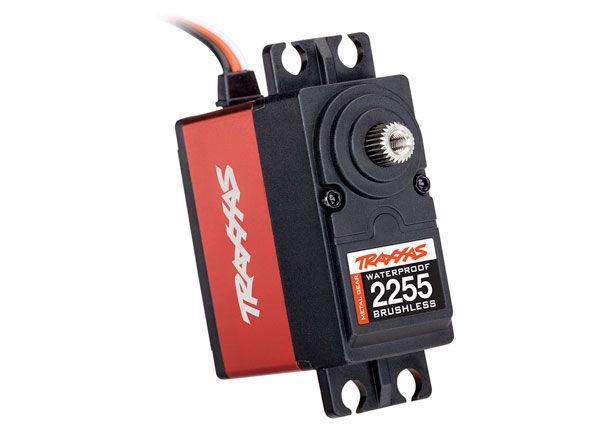

Digital High-Torque Brushless Servo — 2255

The Traxxas 2255 digital high-torque brushless servo is a waterproof, factory-fit steering upgrade for demanding Traxxas applications. Its brushless motor, metal geartrain, dual ball bearings, and anodized-aluminum center case deliver strong, precise steering while retaining compatibility with Traxxas Stability Management (TSM).

Features

• Fully waterproof construction
• 400 oz-in of torque at 6.0V
• 0.15 sec/60° transit speed at 6.0V
• Brushless motor and digital controller
• Metal gears with dual ball bearings
• Anodized-aluminum center case
• 25-tooth output spline

Specifications

• Operating voltage: 6.0-7.4V DC
• Torque: 400 oz-in at 6.0V
• Speed: 0.15 sec/60° at 6.0V
• Weight: 64 g
• Output spline: 25T
• Motor type: Brushless

Package Contents

• (1) Traxxas 2255 high-torque brushless servo
