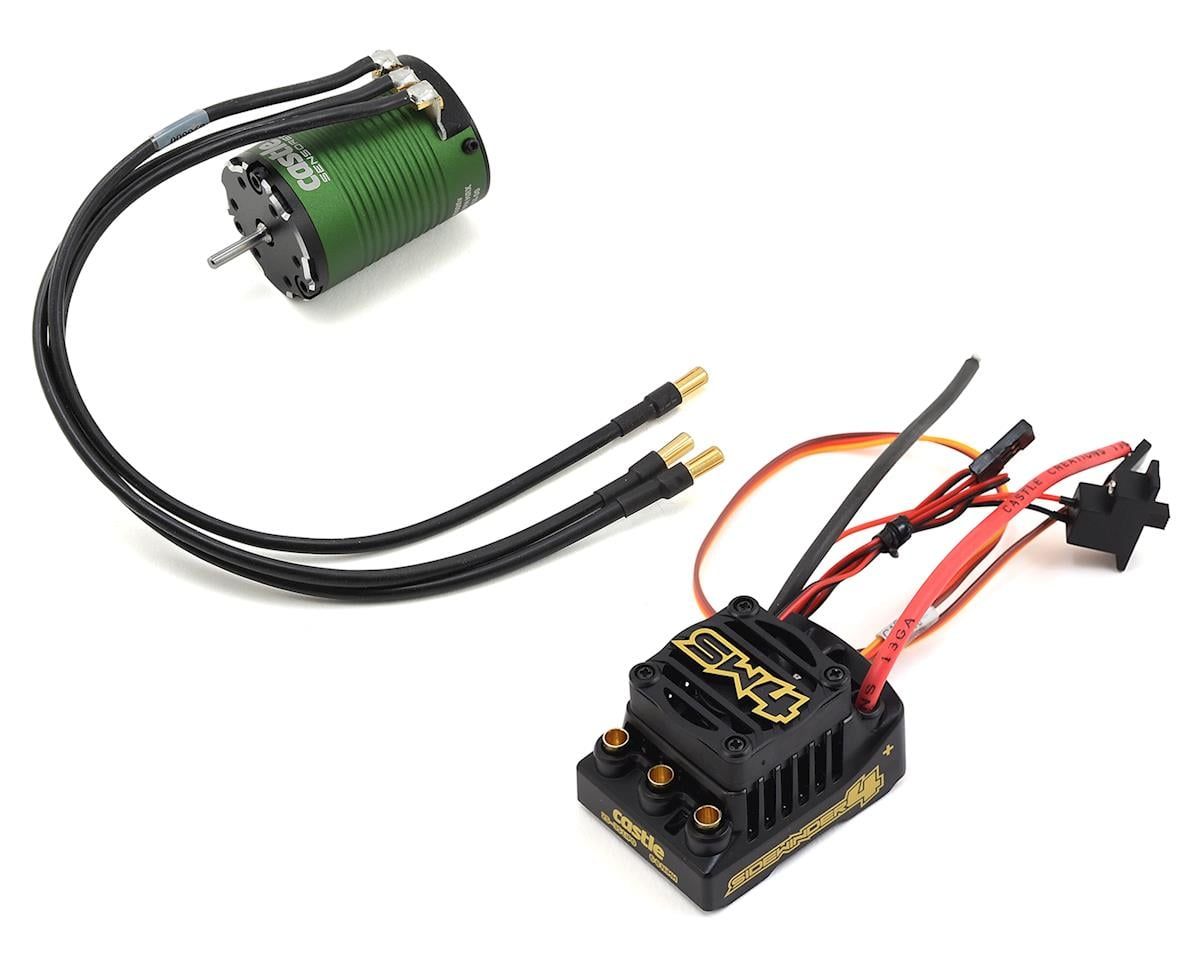

Castle Creations Sidewinder SW4 Waterproof 1/10 ESC/Motor Combo w/1410 (3800kV) — CSE010-0164-05

The Castle Sidewinder SV4 12.6V Waterproof 1/10 ESC builds upon Castle’s most popular platform, the Sidewinder 1/10 series. The ESC is the first of its kind to run Castle’s CRYO-DRIVE technology that combines technology from cutting-edge hardware and software advancements to increase thermal performance. Cooler temps mean longer runs and more power! The Sidewinder 4 is a versatile ESC and is a great choice for short course, on road and monster truck applications when paired with the correct motor, as well as rock crawlers when used in brushed mode.

This combo includes a Sidewinder 4 ESC and 1410-3800Kv sensored motor. The 1410-3800kv is ideal for short course trucks running on 2s LiPo and weighing up to 6.5 lbs; it can be run on a 3s LiPo with very conservative gearing. It is a cool running torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running up to a 3s LiPo.

Key Features

• 3s LiPo; 6
• 8 cell NiMH use in vehicles up 6.5lbs with battery, ready-to-run
• Sensorless brushless and/or brushed motor operation
• Waterproof design ESC and splash resistant 30mm fan*
• 5.0 volts fixed, 2 amps Peak BEC
• Audible alerts for error conditions
• Enhanced drag brake functionality
• Smoother sensorless startups
• Convenient transmitter programming for six common adjustable settings
• Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (sold separately) or via Field Link Card (sold separately)
• Telemetry Link compatible for Futaba® S.BUS2 (sold separately)

Specifications

• Input Voltage Range: 2s
• Operating Environment: Waterproof* design allows for use in nearly any environment
• Brake: Proportional
• Reversible: Yes, but may be disabled for racing.
• On/Off Switch: Yes
• Cooling Fan: 30mm fan included
• ESC Size: 2.08x1.50x1.28" (52.92x38.05x32.56mm)
• ESC Weight (w/wires): 2.26 oz. (64 g)
• Connectors: 4mm female bullets for motor connection.
• Items Needed for Operation: Brushless or Brushed motor, Battery Connector required; Castle 4mm polarized connectors, Dean's Ultra Plug, or Traxxas Power Connector recommended.
• Application Guidelines: The Sidewinder 4 is a versatile ESC that can be used in a wide variety of applications. it can be paired with any 14xx series 4-pole brushless motors;
• Max. Recommended Vehicle Weight: No more than 6.5lbs with battery, ready-to-run.
• Programmability: Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software.
• Telemetry Link Capable: Yes
• *Product Use Statements: Although Sidewinder 4 is waterproof, it is not intended for operation while completely submerged in liquid.
• Input Voltage Range: 2s - 3s LiPo; 6 - 8 cell NiMH BEC Specifications: 5.0 volts fixed, 2 amps. Operating Environment: Waterproof* design allows for use in nearly any environment…

Note: Not all LiPos are created equal, and surge ratings should never be used to determine a pack’s suitability for a brushless application. Use the CONTINUOUS C rating only. Brushless setups frequently hit 100+ amps in peaks.

Note: Please refer to the Castle Gearing Chart for recommended motor, battery and gearing for some of the more popular vehicles on the market.
