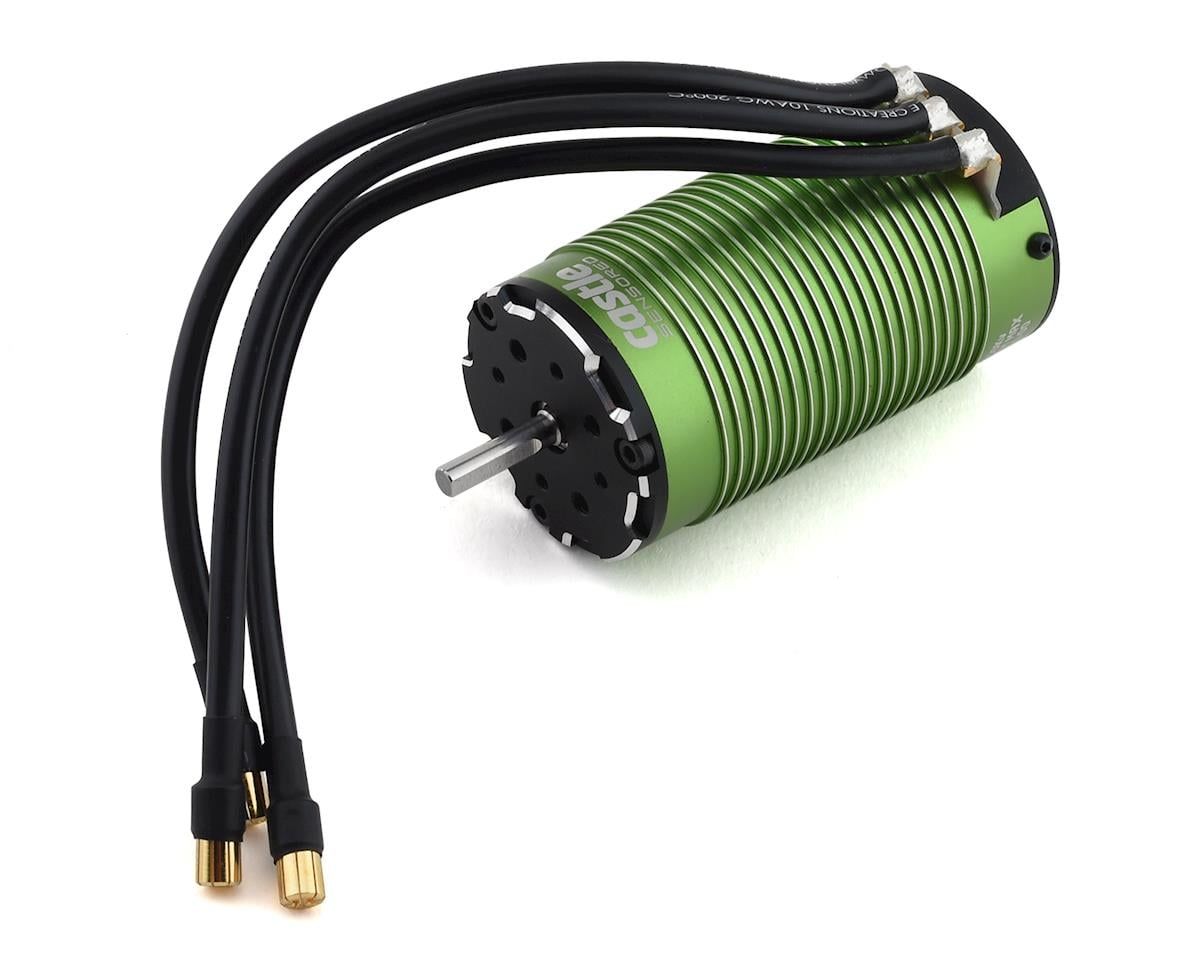

Castle Creations 1717 Sensored 4-Pole Brushless Motor (1650Kv) — CSE060-0081-00

The Castle Creations 1717-1650Kv motor delivers high-torque brushless power for large-scale RC vehicles. Its sensored 4-pole, 12-slot design provides smooth low-speed response while maintaining efficient, cool-running performance at higher speeds.

Key Features

• Sensored and sensorless operating modes
• 4-pole, 12-slot design
• QuietSense sensor technology for precise startup and synchronization
• High-temperature neodymium magnets with Kevlar rotor wrap
• Oversized bearings and vibration-damping construction
• Water-resistant motor design

Specifications

• Motor Kv: 1650
• Maximum input: 8S LiPo
• Maximum RPM: 56,000
• Diameter: 1.87 in (47.6 mm)
• Length: 3.35 in (85.1 mm)
• Shaft: 5 mm diameter x 20 mm long
• Connectors: 6.5 mm male bullets
• Weight with wires: 21.08 oz (597.6 g)
• Recommended maximum vehicle weight: Under 20 lb

Recommended ESC: Castle Mamba Monster X 8S. Monitor motor temperature and do not exceed 180°F.
