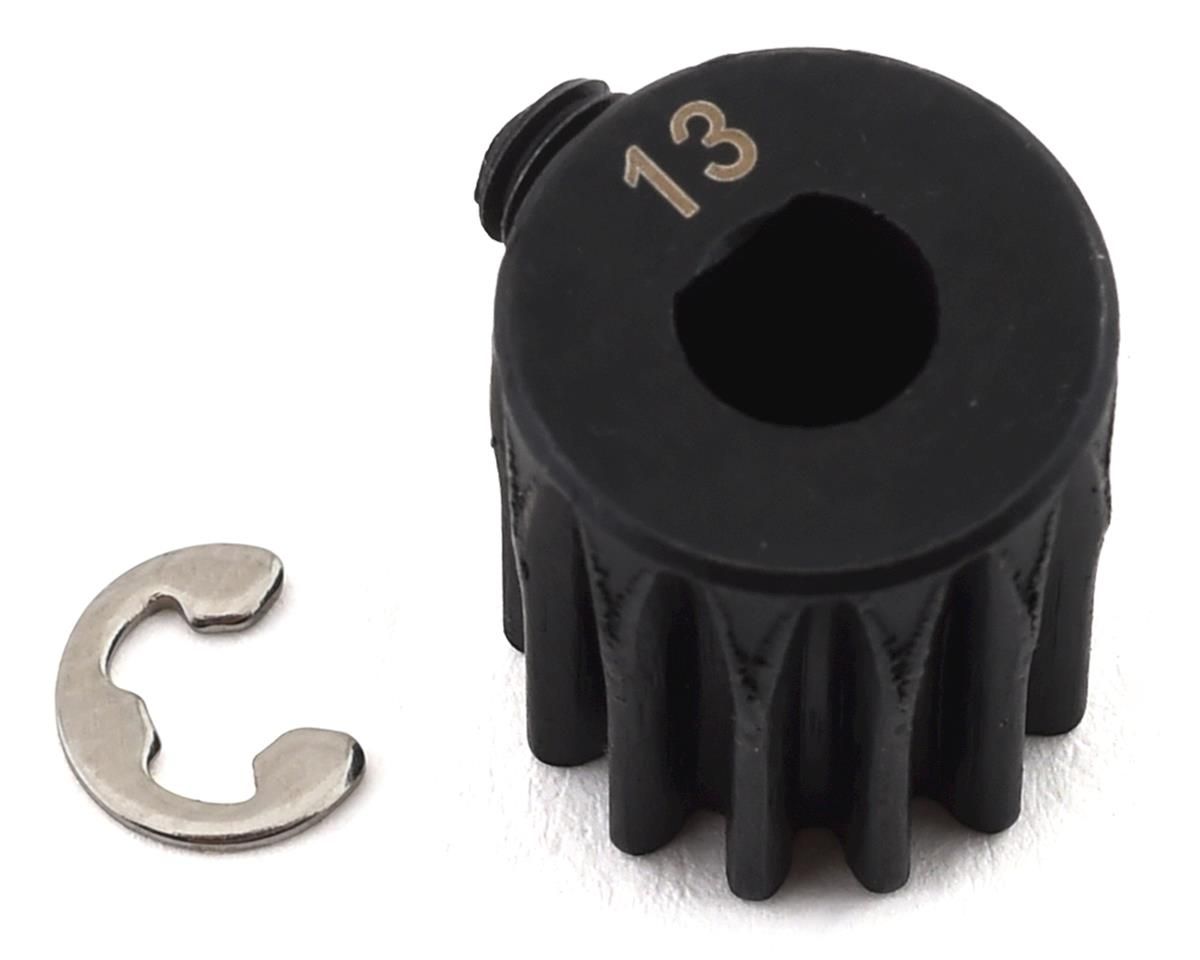

13T 0.8Mod Safe-D5 Pinion Gear — ARA310996

ARRMA ARA310996 is a 13-tooth 0.8 Mod steel Safe-D pinion gear for compatible 5 mm motor shafts. The D-shaped bore maintains positive drive and braking engagement even if the retaining set screw loosens.

Features & Application

• Exact ARRMA replacement or tuning part: ARA310996
• Tough steel construction for durable drivetrain service
• D-shaped 5 mm bore matches compatible Safe-D motor shafts
• Safe-D profile preserves drive and braking engagement if the set screw backs out
• Wide gear teeth support smooth operation
• Precision threaded set-screw hole secures the gear to the motor shaft
• Included E-clip provides secondary retention

Specifications

• Manufacturer: ARRMA
• Manufacturer part number: ARA310996
• UPC/GTIN: 5052127037945
• Tooth count: 13T
• Gear pitch: 0.8 Mod
• Motor-shaft bore: 5 mm Safe-D
• Material: Steel
• Bore type: D-shaped Safe-D profile

Package Contents

• One 13-tooth 0.8 Mod Safe-D steel pinion gear
• One M4x4 mm set screw
• One 3.2 mm E-clip
